Silicone Elastomer TS9911 Features • Flowable • Room temperature and heat cure • Good dielectric properties • Rapid, versatile cure processing controlled by temperature • High transparency allows easy inspection of components
Features & Benefits of Silicone Elastomer TS9911
Two component silicone used for bonding, sealing and coating protection of electronic components. Mainly used for LED lighting potting.
◆ REACH, ROHS certified
◆ Excellent adhesion
◆ No corrosion, high insulation
Application of Silicone Elastomer TS9911
◆ LED Lighting encapsulation
◆ Power supply
◆ Connectors
◆ Sensors
◆ Industrial control
◆ Transformers
Description of Silicone Elastomer TS9911
Tensan silicone elastomer consists of two liquid components A and B. When the two components are thoroughly mixed at a weight ratio of 10: 1, the mixed liquid will solidify into a flexible elastomer at room temperature. The duration of application and the curing time at room temperature are independent of the amount of material.
Packing Information of Silicone Elastomer TS9911
1. For mix ratio 10:1
A 20KG / B 2KG
Storage andValidity of Silicone Elastomer TS9911
Stored in room temperature, and in a cool, ventilated, dry place.
Shelf life: 6 month

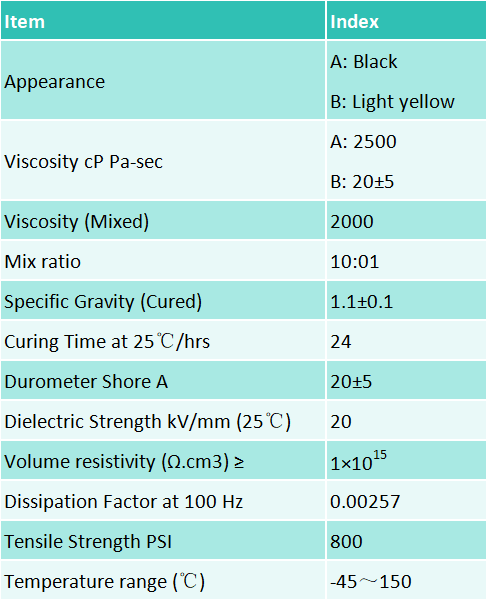

Typical Properties of Silicone Elastomer TS9911
|
Before Curing |
|
|
Item |
Index |
|
Appearance |
A: black B: light yellow |
|
Mix ratio |
10:1 |
|
Viscocity (25℃，MPa) |
A: 2500 B: 20±5 |
|
Property( g/cm3) |
A:1.23+0.02 B: 0.95+0.02 |
|
Tack free time( min ) |
40-60 |
|
After Curing |
|
|
Item |
Index |
|
Hardness( Shore )≤ |
40 |
|
Tensile Strength ( Mpa ) ≥ |
0.50 |
|
Breaking Elongation ( % ) ≥ |
120 |
|
Volume resistivity ( Ω.cm3 ) ≥ |
1×1015 |
|
Break voltage（KV/mm）≥ |
14 |
|
Dielectric constant（1MHZ） |
3.5 |
|
Temperature range( ℃ ) |
-45～150 |
