TENSAN Liquid Silicone Adhesive TS6601 is semi-flow RTV silicone with good waterproof function and sealing strength. Liquid Silicone Adhesive can be used for bonding metal, glass, ceramics etc. material. REACH, ROHS certified MSDS for air/sea shipment Fast curing Non-corrosive to most Copper, Polycarbonate plastics material Excellent waterproof function Excellent sealing performance Good Performance for insulation
Features & Benefits of Liquid Silicone Adhesive TS6601
TENSAN Liquid Silicone Adhesive TS6601 is semi-flow RTV silicone with good waterproof function and sealing strength.Liquid Silicone Adhesive can be used for bonding metal, glass, ceramics etc. material.
◆ REACH, ROHS certified
◆ MSDS for air/sea shipment
◆ Fast curing
◆ Non-corrosive to most Copper,Polycarbonate plastics material
◆ Excellent waterproof function
◆ Excellent sealing performance
◆ Good Performance for insulation
Typical Applications of Liquid Silicone Adhesive TS6601
This material is widely applied in LED Industry for housing sealant and outdoor light waterproof.
◆ Use for LED bulb&Tube&other indoor lights
◆ Use for Street light,High bay &other outdoor lights
◆ Use for LED auto lights
Packing Information of Liquid Silicone Adhesive TS6601
1. Hard plastic tube 100 ml
100 tubes / carton
2. Hard plastic tube 300 ml
24 tubes / carton
3. Hard plastic tube 2600ml
4 tubes / carton
4. Customized packing is acceptable
Storage andValidity of Liquid Silicone Adhesive TS6601
Keep away from children .
Stored in a cool, ventilated, dry place.
Shelf life: 6 months

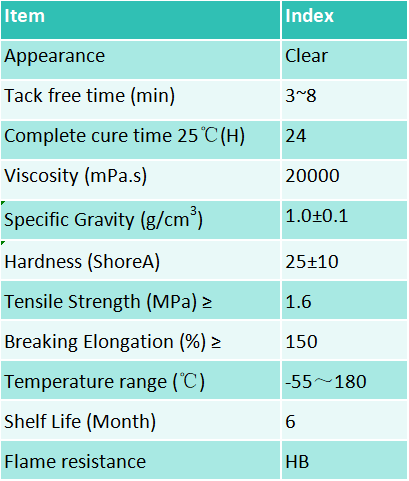

Typical Properties of Liquid Silicone Adhesive TS6601
|
Item |
Index |
|
Appearance |
Clear |
|
Tack free time( min ) |
3～8 |
|
Complete cure time 25℃(H) |
24 |
|
Viscosity(Map.s) |
20000 |
|
Specific Gravity( g/cm3) |
0.92 |
|
Hardness( Shore ) ≥ |
25 |
|
Tensile Strength ( Mpa ) ≥ |
1.6 |
|
Breaking Elongation ( % ) ≥ |
150 |
|
Break Voltage(kv/mm) |
≥20 |
|
Cutting Strength(MPa) |
≥1 |
|
Dielectric constant(1.2MHz) |
2.8 |
|
Volume Resistivity ( Ω.cm3 ) ≥ |
2.0×1014
|
|
Temperature range( ℃ ) |
-55～180 |
|
Flame resistance |
HB |
Other Information
The above information are correct, but does not contain all of the information and can only be used as a guide.
This product is ROHS, REACH compliant. It does not contain any unknow carcinogenic, mutagenic or teratogenic components.
Further information please visit our web:www.sztensan.com
