As the electronics industry moves towards precision and diversification, solder paste and SMT red glue have become indispensable electronic consumables in the SMT field. However, they differ significantly in several aspects, as follows:

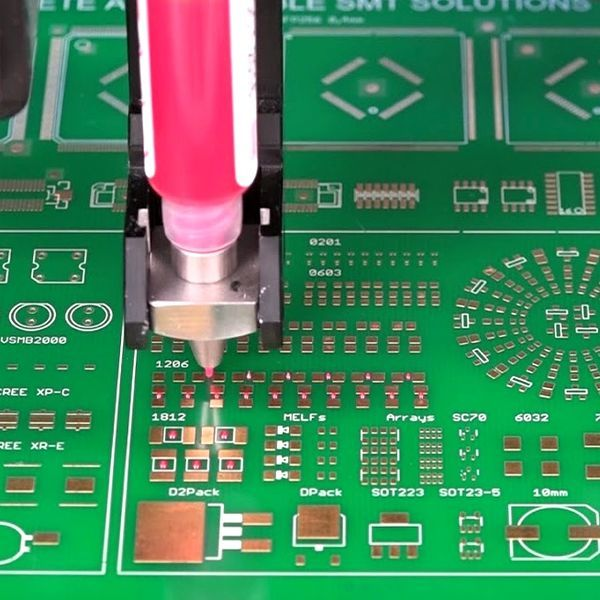

1. In essence and appearance, solder paste is a gray paste-like soldering material composed of solder powder, flux, etc., mainly used for soldering electronic components; SMT red glue is a single-component epoxy resin adhesive, appearing as a red paste, its core function being to fix components.
2. In terms of performance, SMT red glue hardens irreversibly after heating and cannot be remelted; solder paste does not solidify after soldering, and solder joints can be remelted at high temperatures, facilitating rework. In terms of process, red glue is mostly applied using a dispensing process, suitable for circuit boards with a small number of dots; solder paste uses a reflow oven printing process, allowing for batch processing of circuit boards with higher efficiency.
3. In terms of quality and environmental adaptability, red glue is greatly affected by climate, and is prone to component detachment and incomplete soldering after soldering, resulting in a higher defect rate; solder paste has strong solderability, high solder joint strength, and superior stability. Cost selection should be based on the number of components: For SMT components with more through-hole components and fewer through-hole components, choose solder paste processing; for through-hole components with fewer SMT components, choose red glue processing. Both aim to improve yield and quality.
4. Red glue is non-conductive and only serves as an auxiliary fixing agent. It has a lower reflow soldering temperature and requires subsequent wave soldering. Solder paste is conductive and performs the core soldering function, with a relatively higher reflow soldering temperature.
Important Note: Both should be used according to standard operating procedures. The effect of SMT red glue is affected by curing conditions and equipment. It should be selected appropriately based on the production process to ensure the smooth completion of the SMT production process.
