Server motherboards are among the most demanding PCBs in electronics manufacturing. They combine large dimensions, high layer counts, heavy components (CPUs, memory slots, power modules), and stringent reliability requirements – all while operating continuously under high thermal and electrical loads. A single soldering defect can lead to field failures, costly recalls, and downtime. That is why assembly lines need a solder paste for server motherboard manufacturing that delivers exceptional stability, consistent print quality, and robust joint reliability over long production runs. High Stability Solder Paste for Server Motherboard Production – TENSAN TS‑506 is a lead‑free, no‑clean solder paste engineered to meet these exacting demands. With its Sn98.5Ag1.0Cu0.5 alloy, advanced flux chemistry, and optimised rheology, TS‑506 ensures stable viscosity, excellent wetting, and low voiding – all critical for high‑yield server board assembly.
High Stability Solder Paste for Server Motherboard Production – TENSAN TS-506
Server motherboards are among the most demanding PCBs in electronics manufacturing. They combine large dimensions, high layer counts, heavy components (CPUs, memory slots, power modules), and stringent reliability requirements – all while operating continuously under high thermal and electrical loads. A single soldering defect can lead to field failures, costly recalls, and downtime. That is why assembly lines need a solder paste for server motherboard manufacturing that delivers exceptional stability, consistent print quality, and robust joint reliability over long production runs.
High Stability Solder Paste for Server Motherboard Production – TENSAN TS‑506 is a lead‑free, no‑clean solder paste engineered to meet these exacting demands. With its Sn98.5Ag1.0Cu0.5 alloy, advanced flux chemistry, and optimised rheology, TS‑506 ensures stable viscosity, excellent wetting, and low voiding – all critical for high‑yield server board assembly.
What Is TENSAN TS‑506?
TENSAN TS‑506 is a no‑clean solder paste for SMT assembly that offers:
For server motherboard production, where board sizes often exceed 400 mm and component densities are high, TS‑506 is the ideal solder paste for server motherboard manufacturing.
Key Specifications

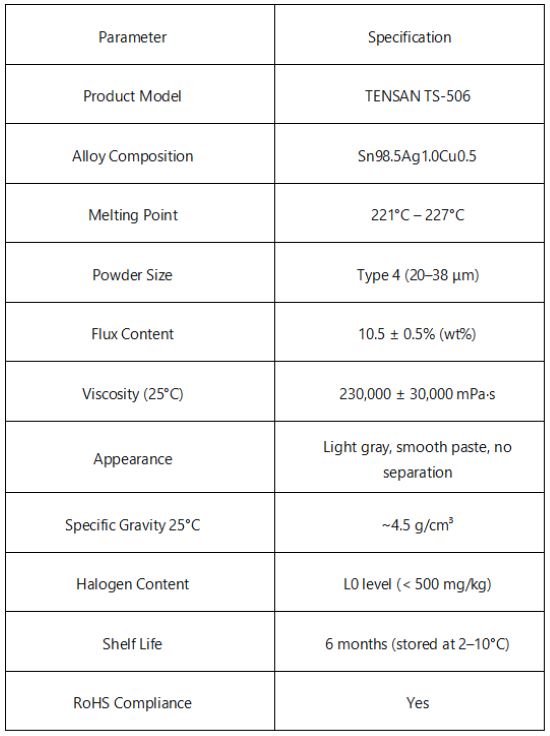

Alloy & Physical Properties

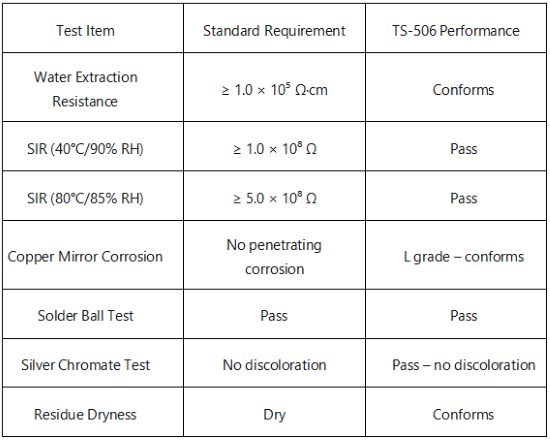

Electrical & Reliability Properties
Why Choose TENSAN TS‑506 as Your High Stability Solder Paste for Server Motherboard Production?
1. Unmatched Print Stability for Long, Uninterrupted Runs
Server motherboard production often involves large panel sizes and high‑mix component placements, requiring solder paste to remain stable over extended print cycles. TS‑506 maintains its viscosity within a tight window (230,000 ± 30,000 mPa·s) for more than 8 hours under typical shop‑floor conditions. Its low slump and clean stencil release ensure consistent deposit volumes – even for fine‑pitch BGA and QFP pads. This stability makes it a true solder paste for server motherboard manufacturing that reduces stencil cleaning frequency and boosts overall equipment effectiveness.
2. Ultra‑Low Voiding for Reliable Thermal Management
Server CPUs, chipsets, and power MOSFETs generate significant heat. Voids in solder joints act as thermal barriers, increasing junction temperatures and shortening component life. TS‑506’s flux system is specially formulated to minimise gas entrapment, achieving voiding rates below 15% on large thermal pads. By choosing this High Stability Solder Paste for Server Motherboard Production, you ensure superior heat transfer and long‑term reliability under continuous operation.
3. Excellent Wetting on Heavy Copper and Thick Boards
Server motherboards often use thick copper planes and heavy traces, which can be challenging for solder wetting. TS‑506’s activator package delivers robust wetting on all standard finishes, including OSP and ENIG, even on large ground pads. This reduces the risk of head‑in‑pillow and non‑wet opens – common defects in server board assembly.
4. Wide Reflow Window for Complex Board Designs
Different areas of a server motherboard heat at different rates due to uneven copper distribution. TS‑506 offers a broad process window: preheat ramp ≤2.5°C/s, soak time 90–120s, and peak temperature 240–250°C. This flexibility allows you to optimise the profile for both thick and thin sections, ensuring consistent soldering across the entire board. This forgiving nature is essential for any solder paste for server motherboard manufacturing.
5. High SIR and Corrosion Resistance for Long‑Term Reliability
Server motherboards must operate in varying environmental conditions without electrochemical migration. TS‑506 passes SIR tests at 40°C/90% RH and 80°C/85% RH with values exceeding 1.0×10⁸ Ω and 5.0×10⁸ Ω, respectively. The no‑clean residue is non‑conductive and non‑corrosive (L0 halogen level), ensuring signal integrity and preventing dendrite growth over the product’s 5‑10 year service life.
6. No‑Clean Convenience with Full Testability
After reflow, the residue is transparent and easily penetrated by ICT probes, eliminating the need for cleaning. This reduces process costs and chemical usage, while the low‑voiding characteristic ensures reliable probe contact – a key advantage for high‑volume server board production.

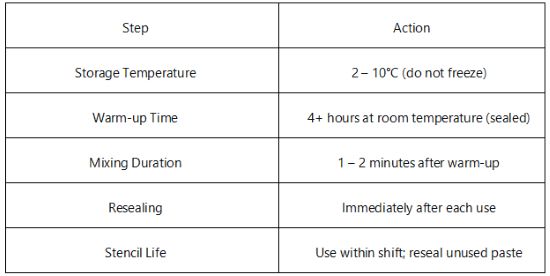

Storage and Handling Guidelines
Important: Always warm up TS‑506 in its sealed container to prevent moisture condensation, which can cause spattering and increased voiding – especially critical for large server boards.

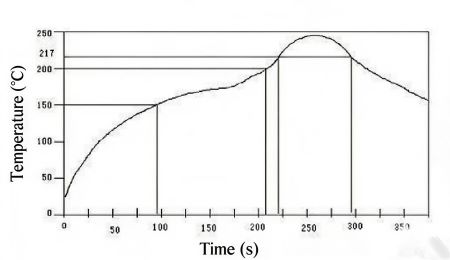

Recommended Temperature Curve
For server motherboards with heavy copper planes, we recommend the longer soak time (120s) to ensure uniform temperature distribution before reflow, reducing thermal gradients and voiding.
Typical Applications in Server Motherboard Manufacturing
TS‑506 is the preferred solder paste for server motherboard manufacturing for leading EMS providers and OEMs. It is used in the assembly of:
Its stability and reliability make it ideal for both prototype builds and high‑volume production lines.
Quality Assurance
Every batch of TENSAN TS‑506 is accompanied by a Certificate of Analysis confirming:
Our stringent quality control ensures batch‑to‑batch consistency, so you can rely on TS‑506 for every server board order.
Frequently Asked Questions
Q: What makes TS‑506 particularly suitable for server motherboards?
A: Its high viscosity stability, low voiding, and wide reflow window address the unique challenges of large, complex boards. This High Stability Solder Paste for Server Motherboard Production ensures consistent printing and reliable joints across the entire panel.
Q: How does TS‑506 handle thick copper planes?
A: The flux system is designed to stay active through extended soak times, ensuring good wetting even on heavy copper. The recommended profile with a longer soak helps equalise temperatures across the board.
Q: Is TS‑506 compatible with lead‑free BGA and QFN components?
A: Yes, TS‑506 is fully compatible with all common lead‑free components, and its low‑voiding property is particularly beneficial for QFN and LGA packages used on servers.
Q: What is the shelf life of TS‑506?
A: Six months from production date when stored at 2–10°C.
Q: Does the residue affect high‑speed signal integrity?
A: No. The residue is transparent and non‑conductive, and its SIR values are well above industry requirements, ensuring no leakage or signal degradation.
Q: Can TS‑506 be used in nitrogen reflow?
A: Yes. While it performs well in air, nitrogen can further improve wetting on large ground planes, which is sometimes preferred for server boards.
Conclusion
Server motherboard manufacturing demands a solder paste that never wavers – in viscosity, in print quality, or in joint reliability. TENSAN TS‑506 delivers exactly that. As the High Stability Solder Paste for Server Motherboard Production, it combines long stencil life, low voiding, excellent wetting, and a forgiving process window – all at a cost‑effective low‑silver alloy composition.
When you choose TS‑506, you choose a solder paste for server motherboard manufacturing that reduces defects, improves thermal performance, and extends the operational life of your servers. Whether you are assembling the latest enterprise‑grade motherboards or high‑density storage systems, TS‑506 provides the stability and reliability you need.
Upgrade your server board assembly with TENSAN TS‑506 – where stability meets performance.
