Low Void Solder Paste for BMS Battery Management System – TENSAN TS‑506 is a lead‑free, no‑clean solder paste engineered to meet these exacting demands. With its Sn98.5Ag1.0Cu0.5 alloy, advanced flux chemistry, and Type‑4 powder, TS‑506 offers ultra‑low voiding, excellent wetting on heavy copper, high SIR values, and stable print performance – all at a cost‑effective low‑silver price point. It is the proven solder paste for BMS battery management system for leading EV and energy storage manufacturers.
Low Void Solder Paste for BMS Battery Management System – TENSAN TS-506
Battery Management Systems (BMS) are the brains and guardians of modern energy storage – from electric vehicles and e‑bikes to stationary grid batteries and backup power units. A BMS monitors cell voltages, balances charge, protects against over‑current and over‑temperature, and communicates with the vehicle or system controller. These functions demand exceptional reliability, because a single solder joint failure can compromise cell balancing, generate false alarms, or even create thermal runaway risks.
BMS PCBs share common characteristics: thick copper layers for high‑current carrying, large thermal pads for power MOSFETs and shunt resistors, mixed‑size components, and operation in vibration‑prone, thermally cycling environments. That is why selecting the right solder paste for BMS battery management system is a mission‑critical decision. You need a paste that minimises voids on thermal pads, resists corrosion under humid conditions, prints consistently on long panels, and delivers strong, fatigue‑resistant joints.
Low Void Solder Paste for BMS Battery Management System – TENSAN TS‑506 is a lead‑free, no‑clean solder paste engineered to meet these exacting demands. With its Sn98.5Ag1.0Cu0.5 alloy, advanced flux chemistry, and Type‑4 powder, TS‑506 offers ultra‑low voiding, excellent wetting on heavy copper, high SIR values, and stable print performance – all at a cost‑effective low‑silver price point. It is the proven solder paste for BMS battery management system for leading EV and energy storage manufacturers.
What Is TENSAN TS‑506?
TENSAN TS‑506 is a no‑clean solder paste for SMT assembly that delivers:
For BMS assemblies that must endure high currents, temperature swings, and vibration, TS‑506 is the ideal solder paste for BMS battery management system.

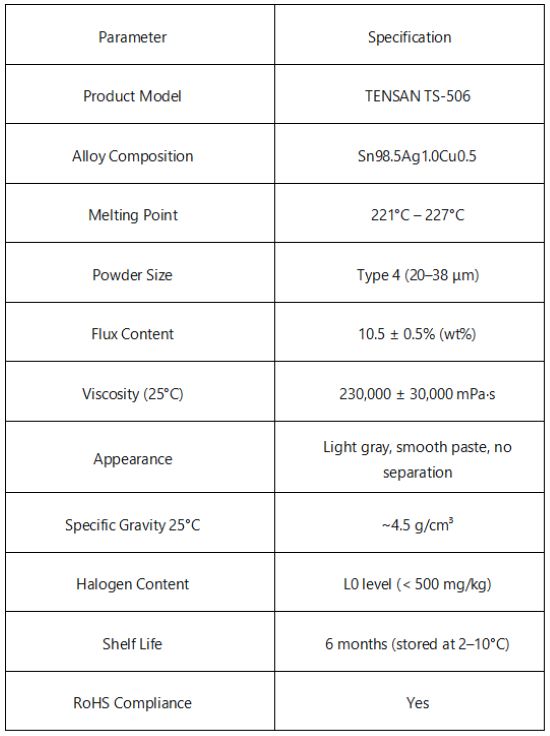

Key SpecificationsAlloy & Physical Properties

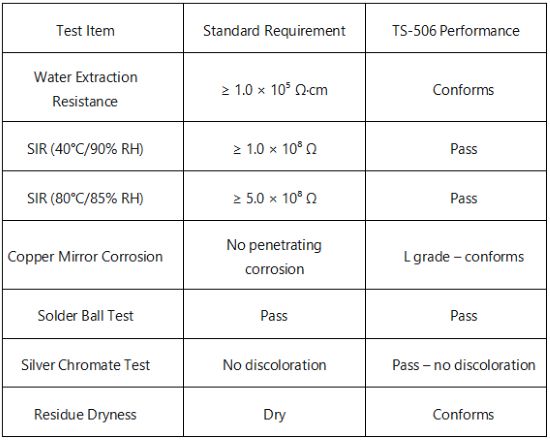

Electrical & Reliability Properties
Why Choose TENSAN TS‑506 as Your Low Void Solder Paste for BMS Battery Management System?
1. Ultra‑Low Voiding – Critical for Thermal ManagementBMS power stages (MOSFETs, shunt resistors, battery cell connectors) generate significant heat that must be conducted away through PCB copper planes and thermal vias. Voids in solder joints act as thermal insulators, raising junction temperatures and accelerating aging. TS‑506’s flux system is engineered to release volatiles gradually, allowing gases to escape before the solder solidifies. In internal tests on typical BMS power pads, voiding rates are consistently below 15% – often below 10% with optimised stencil design. This Low Void Solder Paste for BMS Battery Management System ensures that heat flows efficiently, reducing the risk of thermal runaway and extending battery pack life.
2. High SIR and Corrosion Resistance for Long‑Term Reliability
BMS boards may be exposed to humidity, condensation, and contaminants in automotive or outdoor environments. Electrochemical migration can cause dendrite growth and leakage currents, compromising cell monitoring and safety. TS‑506 passes SIR tests with significant margin (≥1.0×10⁸ Ω at 40°C/90% RH and ≥5.0×10⁸ Ω at 80°C/85% RH). The residue is non‑corrosive (copper mirror test – L grade) and halogen‑free (L0 <500 ppm), ensuring stable insulation resistance over the product’s lifetime. This makes it a trustworthy solder paste for BMS battery management system for both automotive and industrial BMS designs.
3. Excellent Wetting on Heavy Copper and Mixed Finishes
BMS boards often use 2‑oz or even 4‑oz copper for high‑current traces, which can be challenging for solder wetting. TS‑506’s active flux chemistry delivers robust wetting on OSP, ENIG, and HASL, even on large ground pads and thick traces. This reduces non‑wet opens, head‑in‑pillow defects, and insufficient fillets – common issues in BMS assembly.
4. Stable Printing for Large‑Format Panels
BMS production often uses large panels to improve throughput, requiring solder paste to maintain consistent transfer efficiency over many prints. TS‑506’s rheology ensures stable viscosity for 8+ hours with minimal slump, supporting stencil thicknesses of 100–150 μm and fine‑pitch pads down to 0.25 mm. This stability reduces stencil cleaning stops and scrap rates, making it a highly productive solder paste for BMS battery management system.
5. No‑Clean Residue – Compatible with Conformal Coating
Many BMS assemblies require conformal coating for moisture and vibration protection. TS‑506’s residue is transparent, thin, and compatible with most conformal coating materials. Since it does not require cleaning, you avoid the risk of flux residues trapping moisture under the coating – a common failure mode. This feature is especially valued by manufacturers of high‑reliability BMS modules.

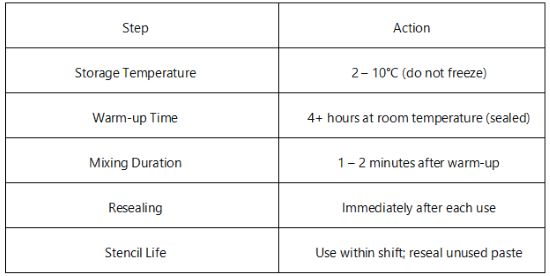

Storage and Handling Guidelines
Important: Always warm up TS‑506 in its sealed container to prevent moisture condensation, which can cause spattering and increased voiding – especially critical for BMS boards with large thermal pads.

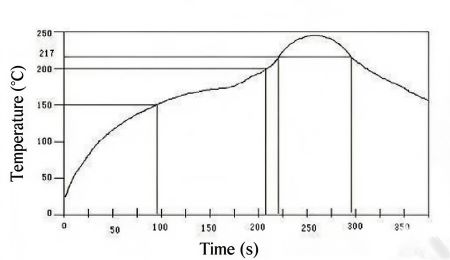

Recommended Temperature Curve
For BMS boards with heavy copper, we recommend a longer soak time (towards 120s) to ensure thermal equilibrium across the board, allowing the flux to activate fully and volatiles to escape before reflow.
Typical Applications in BMS Assembly
TENSAN TS‑506 is the preferred solder paste for BMS battery management system for many tier‑1 automotive suppliers and energy storage integrators. It is used in the production of:
Its combination of low voiding, high SIR, and stable printing makes it ideal for both high‑volume automotive lines and lower‑volume industrial storage production.
Quality Assurance
Every batch of TENSAN TS‑506 is accompanied by a Certificate of Analysis confirming:
Our manufacturing processes are ISO‑certified, ensuring consistent quality lot after lot – essential for BMS products that must meet stringent automotive or safety standards.
Frequently Asked Questions
Q: Why is low voiding so important for BMS solder paste?
A: BMS power components generate heat; voids act as thermal barriers, increasing local temperatures and reducing component life. Low voiding is essential for thermal management and reliability – this is why TS‑506 is designed as a Low Void Solder Paste for BMS Battery Management System.
Q: Does TS‑506 meet automotive reliability standards?
A: Yes. TS‑506 passes SIR, corrosion, and solder ball tests per JIS and IPC standards. It is widely used in automotive BMS assemblies where AEC‑Q and IATF 16949 requirements are applied.
Q: Can TS‑506 handle heavy copper (2 oz and above)?
A: Absolutely. Its flux system is formulated to remain active through extended soak times, ensuring good wetting on thick copper planes. We recommend the longer soak time (up to 120s) for such boards.
Q: Is the residue compatible with conformal coating?
A: Yes. The no‑clean residue is transparent and thin, and it is compatible with most silicone, acrylic, and urethane coatings commonly used on BMS boards.
Q: What is the shelf life of TS‑506?
A: Six months from production date when stored at 2–10°C.
Q: Can TS‑506 be used in nitrogen reflow for BMS?
A: Yes. While it performs well in air, nitrogen reflow can further improve wetting on large ground pads and reduce oxidation on heavy copper, often beneficial for BMS.
Conclusion
Battery Management Systems are the heart of every electric vehicle and energy storage solution – and their reliability depends on the quality of every solder joint. TENSAN TS‑506 delivers ultra‑low voiding, high electrical stability, excellent wetting on heavy copper, and consistent printability, making it the definitive solder paste for BMS battery management system.
By choosing this Low Void Solder Paste for BMS Battery Management System, you protect your BMS from thermal failures, reduce field returns, and ensure safe, long‑life operation of your battery packs. Whether you are building EV battery modules or stationary storage racks, TS‑506 provides the performance and reliability you need.
Trust TENSAN TS‑506 – your partner for robust BMS soldering.
