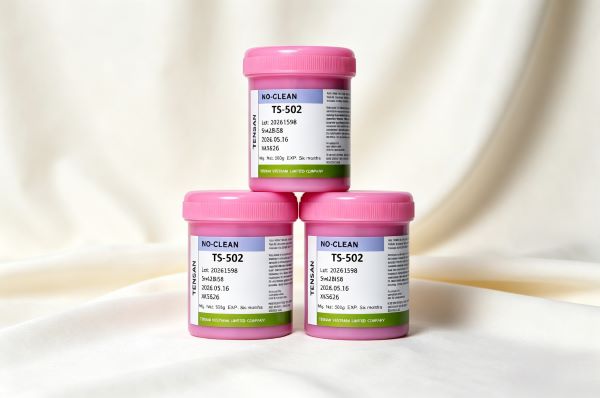

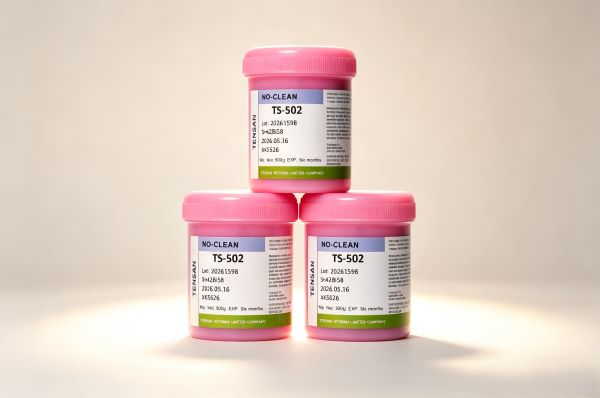

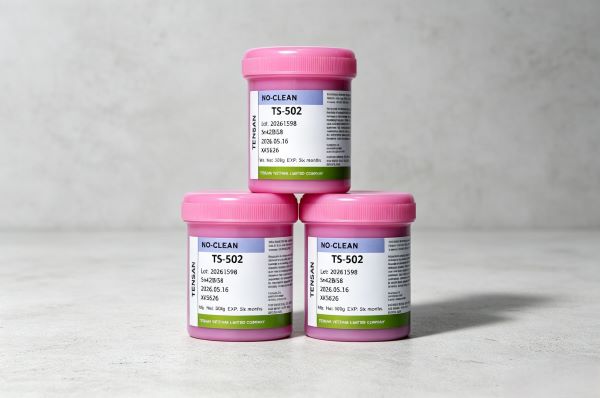

Sn42Bi58 Solder Paste Composition

Sn42Bi58 Solder Paste Composition – Comprehensive Technical Overview & Application Guide

As a fully compliant solution for environmentally conscious electronics assembly, Sn42Bi58 Solder Paste Composition represents a complete formulation that integrates high‑purity Sn42/Bi58 eutectic alloy powder, a low‑ionic activator system, and carefully balanced solvents and rheology modifiers. This advanced Solder paste composition is engineered to deliver exceptional printability, minimal residue, and robust electrical reliability – all while meeting the strictest global restrictions on hazardous substances. The eutectic alloy provides a sharp melting point at 138 °C, enabling energy‑efficient reflow and protecting temperature‑sensitive components. With a powder particle size of 25–45 μm (spanning Type 3 and Type 4), this Solder paste composition ensures excellent stencil release and process stability across both conventional and fine‑pitch SMT lines.

Solder Paste Composition Details

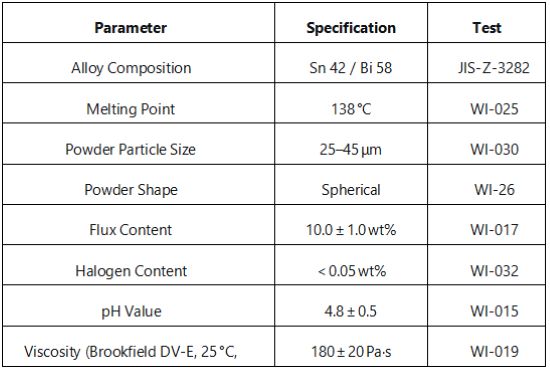

The Sn42Bi58 Solder Paste Composition consists of a eutectic Sn42/Bi58 alloy powder and a specially developed flux system. According to the technical datasheet, the complete Solder paste composition is as follows:

• Alloy composition: Tin 41.5–42.5%, Bismuth 57.5–58.5% – eutectic point at 138 °C (both liquidus and solidus). Lead content is < 0.001%, confirming its full RoHS compliance.
• Flux content in the paste: 10.0 ± 1.0 wt%, with halogen content < 0.05 wt%.
• Flux composition (within the Solder paste composition, by weight):Hydrogenated Rosin: 45–48%、Straight‑chain C9–C12 Aliphatic Alcohol: 20–22%、Cyclical C12–C16 Ester: 9–15%、Polymerized Fatty Oil: 4–6%、Dicarboxylic Acid Activator: 4–8%、Organic Amine C8–C10: 2–3%、Antioxidant/Corrosion Inhibitor: 2–3%

This low‑ionic Solder paste composition leaves minimal, non‑conductive residues after reflow, eliminating the need for post‑soldering cleaning while maintaining high surface insulation resistance (SIR) – a critical attribute for any high‑reliability Solder paste composition used in no‑clean processes.

Printing Performance & Process Stability – Enabled by the Solder Paste Composition

Designed for both conventional and fine‑pitch applications, this Solder paste composition features a powder particle size of 25–45 μm, which matches the Type 3 range while overlapping with Type 4. This unique characteristic, combined with the rheology provided by the flux and solvent system in the Solder paste composition, ensures excellent release from additive‑process stencils. The overall Solder paste composition optimizes transfer efficiency and minimizes slump, guaranteeing consistent solder deposit geometry across long production runs – a hallmark of a premium Solder paste composition formulation.

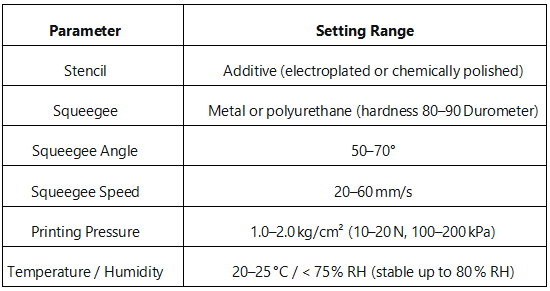

Recommended printing parameters (Table 3 from TDS) – fully compatible with all major printers:

Key production advantages delivered by this Solder paste composition:

• Minimal viscosity change during continuous printing – the robust Solder paste composition prevents shear degradation, ensuring uniform deposit volume for both fine and coarse apertures.
• Non‑hydrophilic nature – the Solder paste composition does not absorb moisture even at up to 80 % RH, preventing solder ball defects – a major benefit for users in humid environments.
• Extended stencil life (> 8 hours) – the Solder paste composition resists drying, reducing cleaning downtime and maximizing throughput.
• Excellent anti‑slump properties (< 0.2 mm) – the Solder paste composition maintains sharp printed edges, preventing bridging at fine pitches.

Electrical Reliability & Performance of the Solder Paste Composition

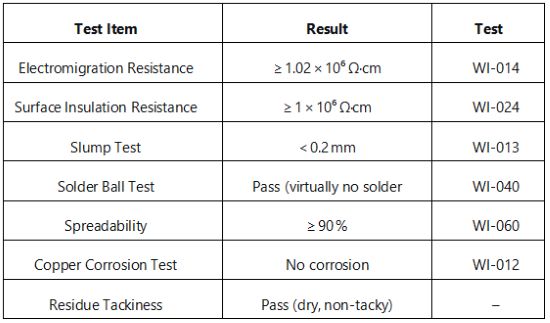

The activator system within the Sn42Bi58 Solder Paste Composition employs a low‑ionic chemistry, passing stringent tests without causing corrosion or electromigration. This makes it an ideal Solder paste composition for no‑clean assemblies where post‑reflow cleaning is impractical – a key requirement for high‑volume production.

These results confirm that Sn42Bi58 Solder Paste Composition delivers high reliability even in humid or high‑voltage environments, meeting the demanding requirements of modern consumer, automotive, and industrial electronics – all while maintaining its superior Solder paste composition integrity.

Low‑Temperature SnBi Eutectic Advantages – with Environmental Compliance

As a fully compliant Solder paste composition (Pb < 0.001 %), Sn42Bi58 Solder Paste Composition meets RoHS, REACH, and other global environmental regulations. Compared to conventional SAC (SnAgCu) alloys, the Sn42/Bi58 eutectic offers:

• Melting point 138 °C – approximately 80 °C lower than SAC, protecting temperature‑sensitive components and substrates, while reducing energy consumption and thermal stress on PCBs.
• Mechanical properties (of the soldered joint):Tensile strength: 55 MPa (25 °C) / 28 MPa (100 °C)、Elongation: 13 % (25 °C) / 18 % (100 °C)、Coefficient of thermal expansion: 13.4 × 10⁻⁶/°C
• Excellent creep resistance and thermal fatigue performance, verified in LED lighting, automotive sensors, and high‑frequency RF modules.

The low‑temperature profile reduces PCB warpage – a significant advantage for users of this Solder paste composition when transitioning from higher‑melting alloys, and the powder size ensures compatibility with both standard and fine‑pitch stencil designs.

Reflow Profile & Process Guidelines for the Solder Paste Composition

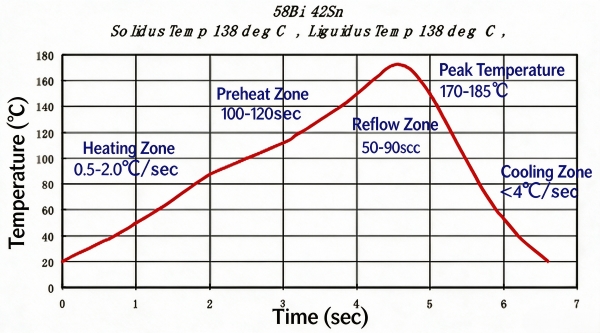

To achieve optimal wetting and minimize voiding, the following reflow profile is recommended for Sn42Bi58 Solder Paste Composition – applicable regardless of mixing method:

Handling guidelines for this Solder paste composition:

• Thawing – Allow 4–6 hours at 25 °C before opening to prevent moisture condensation.
• Mixing – Stir manually (3–6 minutes) or use a standard mixer (2–5 minutes) until viscosity returns to 180 ± 20 Pa·s. The robust Solder paste composition ensures reliable performance after either method.
• Printing‑to‑placement window – Complete component placement within 3–6 hours after printing; the Solder paste composition maintains tackiness throughout this period.
• Storage – Sealed at 0–10 °C, < 75 % RH; shelf life 180 days from date of manufacture.

Application Scenarios & Supply Capacity

Sn42Bi58 Solder Paste Composition has been successfully deployed in mass production across multiple sectors, with customers relying on its proven Solder paste composition performance:

• Consumer Electronics – TWS earbuds, smartwatches, and portable devices, where the Solder paste composition enables low‑temperature assembly and fine‑pitch printing.
• LED Lighting – COB modules and automotive interior lighting, where thermal management and reliability are critical, and the Solder paste composition ensures minimal residue and high SIR.
• Automotive Electronics – Battery management systems (BMS), in‑vehicle sensors, and infotainment, requiring high vibration resistance – all delivered by this robust Solder paste composition.

With over 30 active customers and a monthly production capacity exceeding 2 tons, this Solder paste composition‑based solution is readily available with 72‑hour delivery to support continuous SMT line operations. Our technical team provides on‑site process support to ensure seamless integration of Sn42Bi58 Solder Paste Composition into your existing workflow, with specific guidance for stencil design and reflow optimization.

Safety & Environmental Compliance

• Contains no regulated hazardous substances (RoHS, REACH, Japan Industrial Safety and Health Act)
• .Free from organic solvents subject to poisoning prevention regulations.
• In case of skin contact, clean immediately with ethanol‑soaked cotton, then wash with soap and water.
• Adequate ventilation is recommended during reflow to minimize fume exposure – the Solder paste composition poses no additional toxicity risks.
