Type 5 MicroPowder HighPrecision Solder Paste

TS107E is a widely used no‑clean, leaded solder paste that is offered in several powder size options. This article specifically covers the Type 5 version, designated as Type 5 Micro‑Powder High‑Precision Solder Paste. As a leading Solder paste type 5 product, TS107E delivers exceptional performance in ultra‑fine pitch printing and precision solder dotting applications, while also providing outstanding head‑in‑pillow defect prevention and in‑circuit probe test yield. It is ideally suited for the most demanding high‑density electronic assemblies where micron‑level resolution is critical.

Solder Paste Composition

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste consists of Sn63/Pb37 alloy powder and solder flux. According to the technical datasheet, this Solder paste type 5 uses the Sn63/Pb37 eutectic alloy (63% tin, 37% lead) with a melting point of 183°C. The flux content of this Type 5 Micro‑Powder High‑Precision Solder Paste is approximately 5% (by weight), utilising an ROL0‑grade activator system (the highest reliability level per IPC J‑STD‑004). This Solder paste type 5 formulation ensures minimal residue after reflow, full and reliable solder joints, and fully meets no‑clean process requirements.

Solder Paste Type – Customisable Powder Size Selection

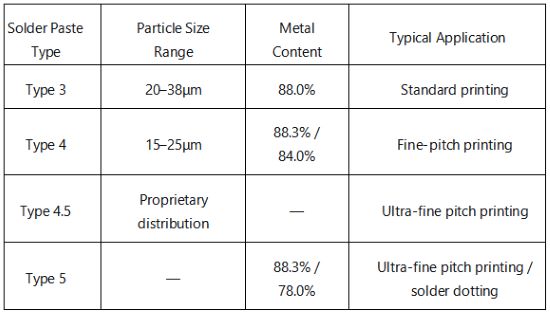

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste is part of a broader product family that offers the industry’s widest range of Solder Paste Type options, including:

Among these, Type 5 is the core focus of this article. The Type 5 Micro‑Powder High‑Precision Solder Paste features an extremely fine particle size distribution (proprietary) that enables printing on the smallest apertures and supports both ultra‑fine pitch stencil printing and high‑precision solder dotting applications. This capability sets TS107E apart from other Solder paste type 5 products on the market.

Sn63/Pb37 Alloy Advantages

As a typical Type 5 Micro‑Powder High‑Precision Solder Paste, TS107E utilises the Sn63/Pb37 eutectic alloy, offering the following core benefits:

• Eutectic characteristics – melting point of 183°C, no plastic zone, rapid solidification during soldering, reducing cold solder risks;
• Mature technology – Sn63/Pb37 is the most widely applied alloy system among Solder paste type 5 and other leaded solder pastes;
• Superior wettability – excellent performance across various PCB surface finishes, especially on CuOSP;
• Cost‑effectiveness – compared to lead‑free alloys, Type 5 Micro‑Powder High‑Precision Solder Paste offers competitive material costs while enabling the finest printing resolution.

This Solder paste type 5 achieves complete alloy coalescence even on the smallest apertures, producing uniform and full solder joints – a critical requirement for micro‑scale assemblies.

Flux and Electrical Reliability

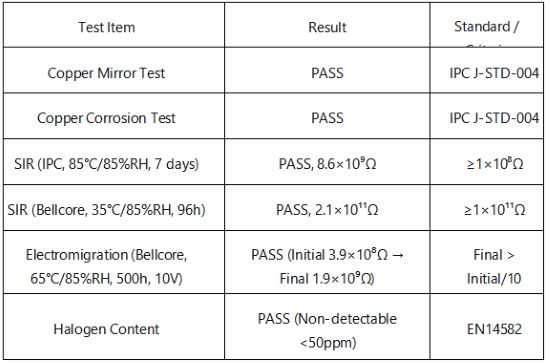

The flux in TS107E employs an ROL0‑grade activator system (IPC J‑STD‑004 highest reliability level) and is halogen‑containing (confirmed by titration and silver halide tests). This flux system ensures that the Type 5 Micro‑Powder High‑Precision Solder Paste passes all of the following tests:

This flux system leaves colourless, transparent, dry, and reliably insulating residue after reflow, meeting no‑clean requirements while delivering IPC Class III voiding performance (the highest IPC 7095 classification).

Printing and Dispensing Performance

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste demonstrates outstanding printing consistency and high process capability index (Cpk) on the printer, especially for ultra‑fine pitch stencils and micro‑apertures. In addition, its fine powder formulation makes it highly suitable for precision solder dotting applications. The key printing and dispensing parameters for this Solder paste type 5 are:

• Printing speed: 25–150mm/s (1–6 in/s), supporting high‑speed printing for fast cycle times and high throughput;
• Squeegee pressure: 0.18–0.27kg/cm (1.0–1.5lbs/inch); higher speeds require increased pressure;
• Squeegee angle: 60° (standard);
• Squeegee material: metal or polyurethane rubber (hardness 80–90 Shore);
• Stencil thickness: 100–150μm (4–6mil);
• Stencil separation speed: 3–10mm/s;
• Stencil material: recommended Alpha series electroformed/laser‑cut stencils.

This Type 5 Micro‑Powder High‑Precision Solder Paste exhibits minimal viscosity variation during continuous printing and dispensing at 25°C/50%RH, significantly reducing cleaning frequency and improving production line efficiency – particularly well‑suited for high‑throughput, micro‑scale applications.

Handling and Process Guidelines

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste must be stored refrigerated at 0–10°C (shelf life: 6 months). Prior to use, the Solder paste type 5 should be allowed to warm to room temperature for approximately 4 hours (ensure temperature ≥19°C before opening), and then mixed:

• Manual mixing: can be stirred with a spatula until uniform;
• Centrifugal mixer (solder paste mixer): recommended speed below 300 RPM, with a pause after every 30–60 seconds of mixing;
• Important: Never mix solder paste recovered from the stencil with unused paste in the same container, as this will alter the rheological properties of the unused Type 5 Micro‑Powder High‑Precision Solder Paste.After printing or dispensing, reflow should be completed as soon as possible.

The reflow profile recommends a peak temperature of 210–220°C (above the 183°C melting point), and can be performed in air or nitrogen atmospheres.

Core Differentiating Advantages – Low Head‑in‑Pillow and High Probe Testability

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste offers two industry‑leading core advantages:

• Low head‑in‑pillow defect rate – This Solder paste type 5 delivers outstanding resistance to head‑in‑pillow defects in BGA/CSP soldering, effectively reducing open defects caused by PCB warpage and component coplanarity issues, improving first‑pass yield.
• Excellent probe testability – TS107E provides best‑in‑class in‑circuit probe test yield. After reflow, the solder joint surface has minimal, colourless, transparent flux residue, resulting in low probe contact resistance and significantly reducing ICT (in‑circuit test) misjudgements. This Type 5 Micro‑Powder High‑Precision Solder Paste is the preferred choice for leaded‑process ICT testing applications.

• Low voiding – Meets IPC 7095 Class III voiding performance (the highest level), ensuring long‑term reliability.

Application Scenarios and Supply Capacity

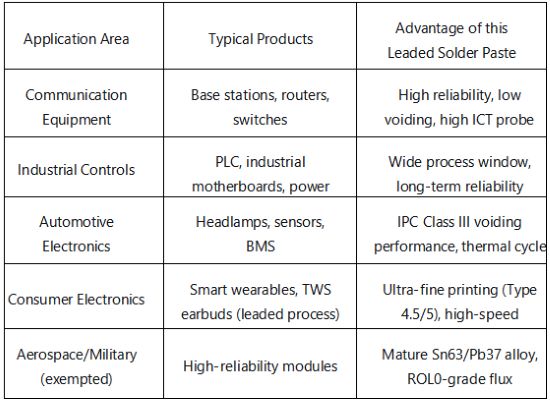

TS107E Type 5 Micro‑Powder High‑Precision Solder Paste has been deployed in volume production across the following sectors:

This Type 5 Micro‑Powder High‑Precision Solder Paste serves over 50 customers, with a monthly production capacity exceeding 3 tonnes and ample inventory, enabling delivery within 48 hours.
